Description

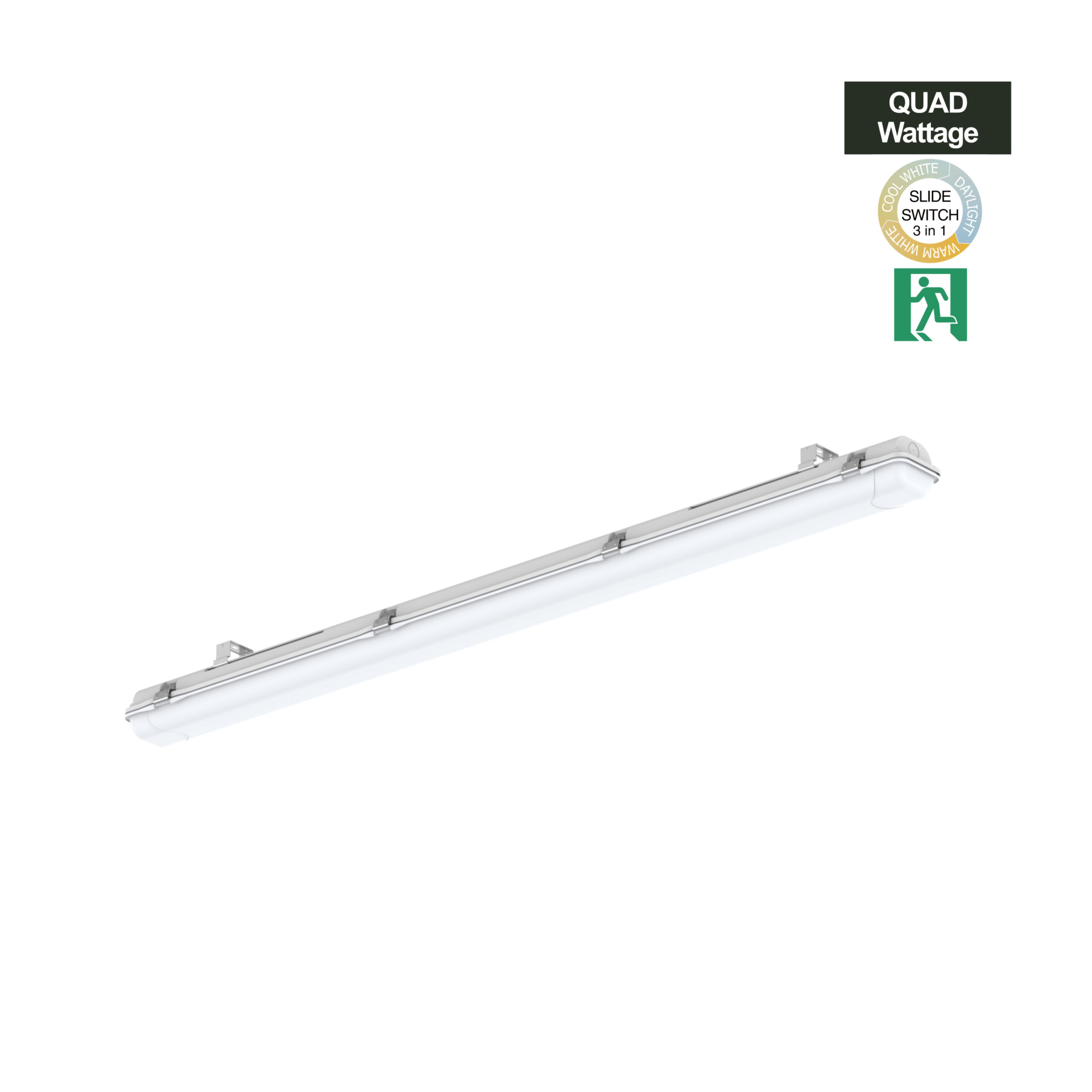

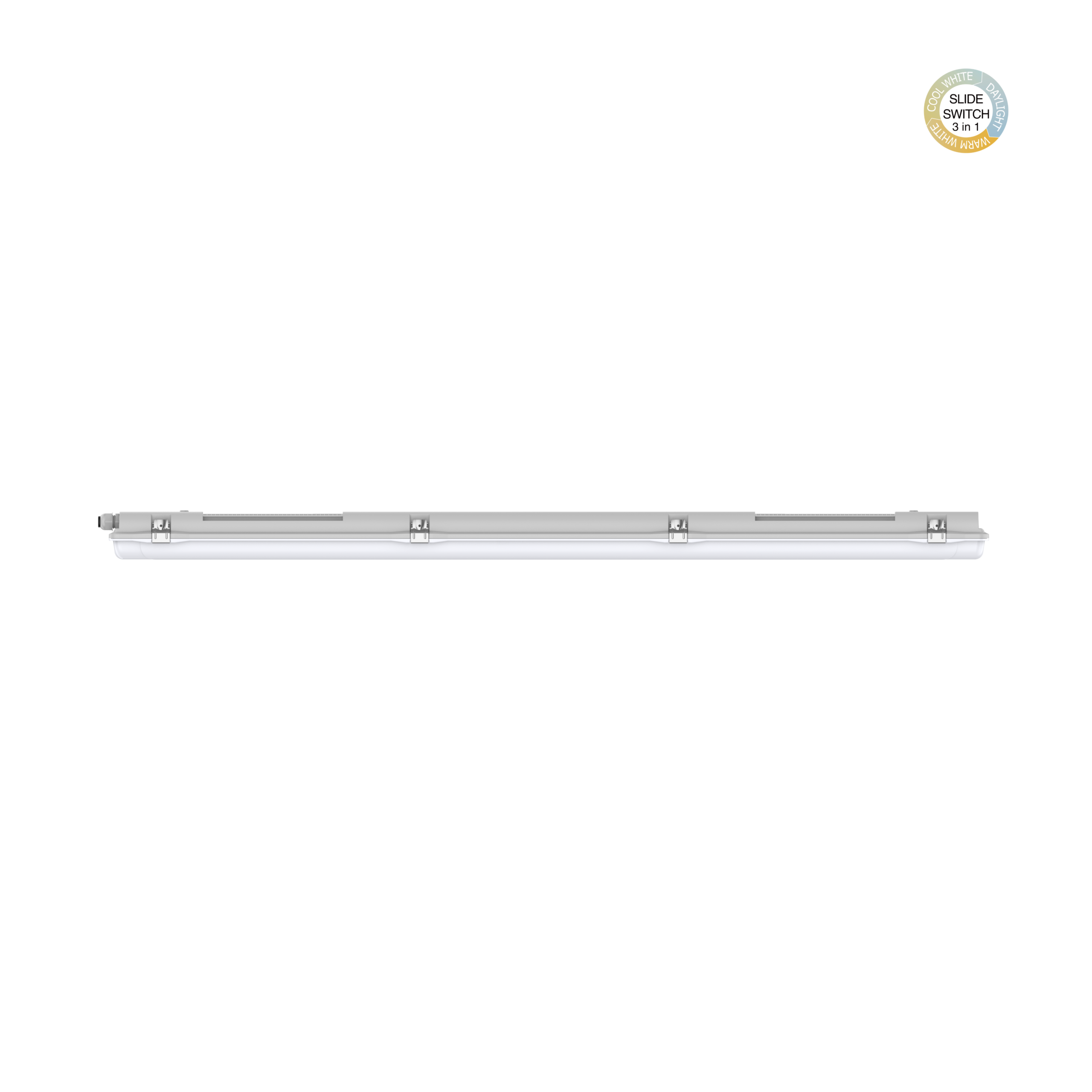

The brand new MAVERICK Battens have just arrived. Complete versatility in one unit!
A market leading IP65 rated batten with power feed either from the rear or ends of the fittings and supplied with an extra large 6mm terminal block for easy wiring.
Quad-wattage to cover installation heights from 2.2 meters up to 5+ meters.
This MAVERICK Emergency uint can be quickly set up to be both Maintained and NON Maintained, offering a 3 hour emergency back up in a D63 class.
| Certifications | Approval | Accessories |
| SAA | – | EMG In Built |
| EMC / RCM | – | |
| CE | – | – |
| TM21 | – | – |
| – | – | – |
| – | – | – |
TECHNICAL SPECIFICATIONS
| Voltage | Wattage | Power Factor | Beam Angle | Colour | Life Cycle |
| AC200 – 240V | 25 / 30 / 35 / 40w | >0.9 | 120 | 3 / 4 / 57k | 56,000 Hrs |
| IP Rating | Function | CRI | Diffused | Dimmable | Heat Rating |
| IP65 | Maintained & Non Maintained | >80 | Yes | No | -20˚c to +45˚c |
EMERGENCY SPECIFICATIONS
| EMG Class | Wattage | Battery Duration | Charge Time | Battery Type | EMG Power |
| CO: D63 / C90: D34 | 25 / 30 / 35 / 40w | 3 Hours | 15 Hours | LiFePo4-Long Life | 3w |
