Description
On popular request, our previously project based CODA Extruded Linear Lights are now to be a stocked item.

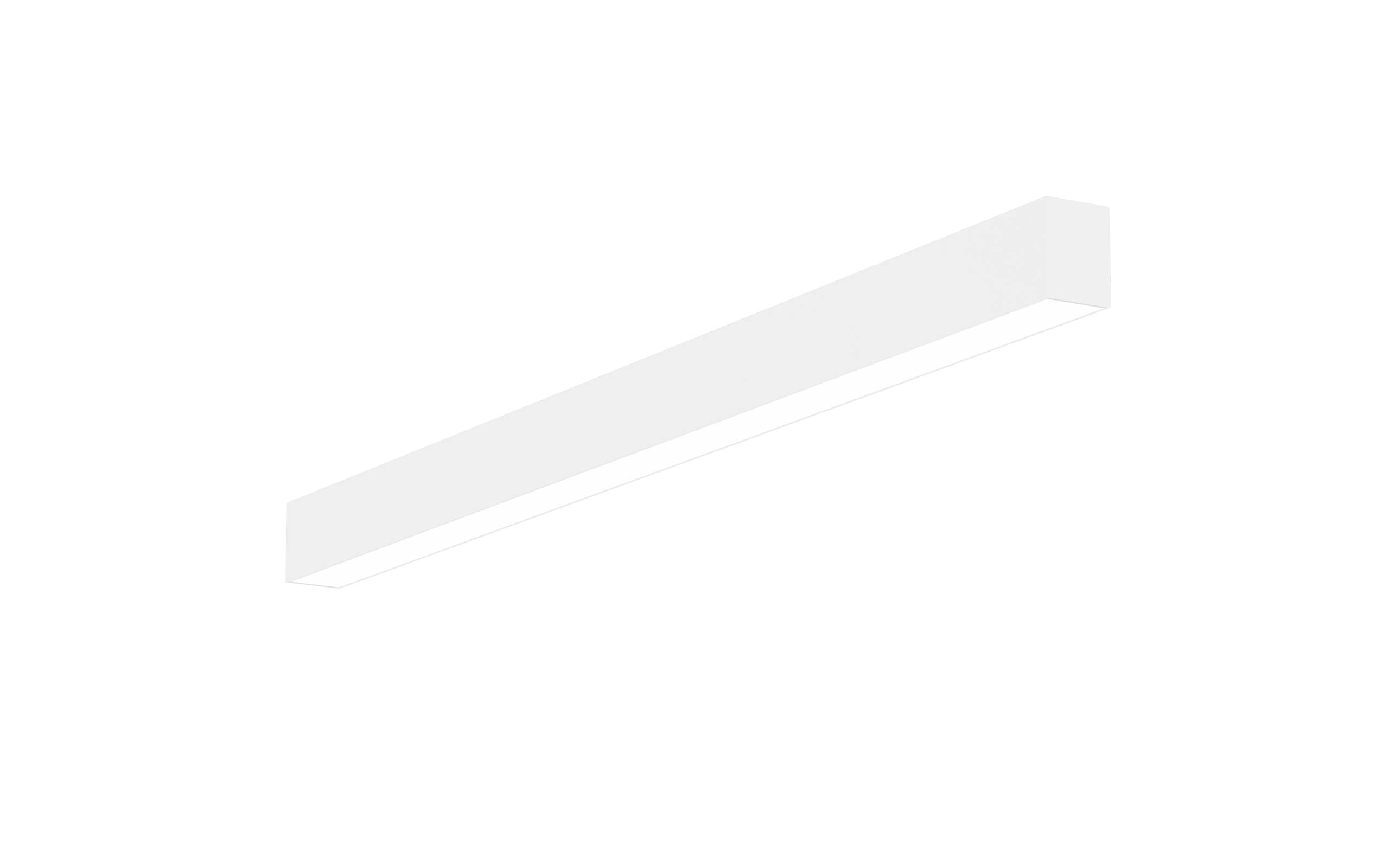

A 36w, architectural linear extruded fitting, with in built CCT colour changing – 3000k / 4000k / 5700k.
Made from high grade powder-coated aluminum and a PC diffuser, available with 3 different mounting options, the CODA Extruded Linear Lights are hard to beat when matching quality and pricing.
They also offer a unique joining system also allows these units to be interlinked to any desired length.
Available in both black and white colours.
*The CODA fittings come standard with a surface mount connector.
| Certifications | Approval | Accessories |
| SAA | – | Suspension Wire |
| EMC / RCM | – | Recessed Kit |
| CE | – | – |
TECHNICAL SPECIFICATIONS
| Voltage | Wattage | Power Factor | Beam Angle | Colour | Life Cycle |
| AC220-240V | 36w | >0.9 | 120 | TRI- 3/4/5.7 | 50,000 Hrs |
| IP Rating | Lumens | CRI | Diffused | Dimmable | Heat Rating |
| IP40 | 3,650 – 3,950 | >80 | Yes | 0-10v | -20˚c to +45˚c |
DOWNLOADS
